Wheel alignment equipment

Across the UK drivers will find garages have one of two wheel alignment systems, either the CCD Camera Wheel Alignment System for the smaller garage or the 3D Wheel Alignment System for larger garages.

Vamag Vector Camera System

CCD Camera Wheel Alignment System

  • Customer print out - PC, 24" monitor and colour printer included
  • Bluetooth or cable connectivity
  • Software in Windows platform with 3D graphics
  • Fast execution through 4‐function keys
  • Unit can be controlled from each measuring head
  • Database containing the correct alignment specifications of over 15,000 vehicles
  • Automatic compensation of caster measure
  • Data freeze function
  • Toe‐in curve measurement procedure according to VAG specifications
  • Single screen summary of test results
  • Real time display of all axle data
  • Database of registered vehicles, searchable by customer name or by vehicle registration number
  • Supplied with Haweka Proclamps, which eliminates the need for run-out compensation.

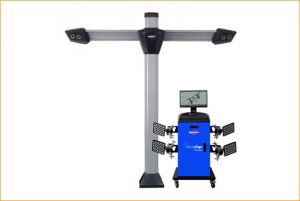

GTR 8400 - 3D COMPUTERISED 4 CAMERA WHEEL ALIGNMENT SYSTEM

GTR 8400 - 3D Computerised 4 Camera Wheel Alignment System

The Tecalemit GTR/8400 is a powerful 3D computerised wheel alignment system for checking and adjustment of car and van wheel alignment. Utilising machine vision software and high precision image targets it is fast, accurate and easy to use.

Key features are:

  • 4 HD digital video cameras enable rapid target capture at any ramp height eliminating the need for a movable boom
  • Utilising 4 cameras enables cameras to be positioned closer to the ramp than is possible with 2 camera systems
  • The 4 wide angle cameras provide up to twice the range of working heights compared with 2 camera systems
  • Unique “Machine Vision” software provides accurate measurements without the need to calibrate targets
  • Integrated database incorporates alignment specifications, adjustment diagrams and animated instruction videos
  • Self centering wheel adapters accommodate wheel sizes 12” – 24”
  • Integrated storage for adapters and targets on the cabinet
  • Cabinet comes with high specification fast PC, extra wide 27” monitor, printer, and unique wireless remote control
